Sacrarium #31SCM62-A, 31SCM62-B
Covers and finials made of bronze with a satin & high polish
bronze finish, water resistant clear coat. Counter Trim Rings and Bowls made
of lightweight and durable aluminum with a chrome powder coat finish or stainless steel.
Hinged Covers open 120 degrees and have a built-in stop to keep
finials from marring counter top.
Keys can be removed in either locked or unlocked position.
Units are suitable for retro fitting existing sacristry cabinets.
Under counter mounting hardware included.
Bowls have a standard 2″ diameter drain opening.
Sinks are made of 20 gauge #304 stainless steel.
***NOTE: We advise everyone to cut out the hole once they have the sink***

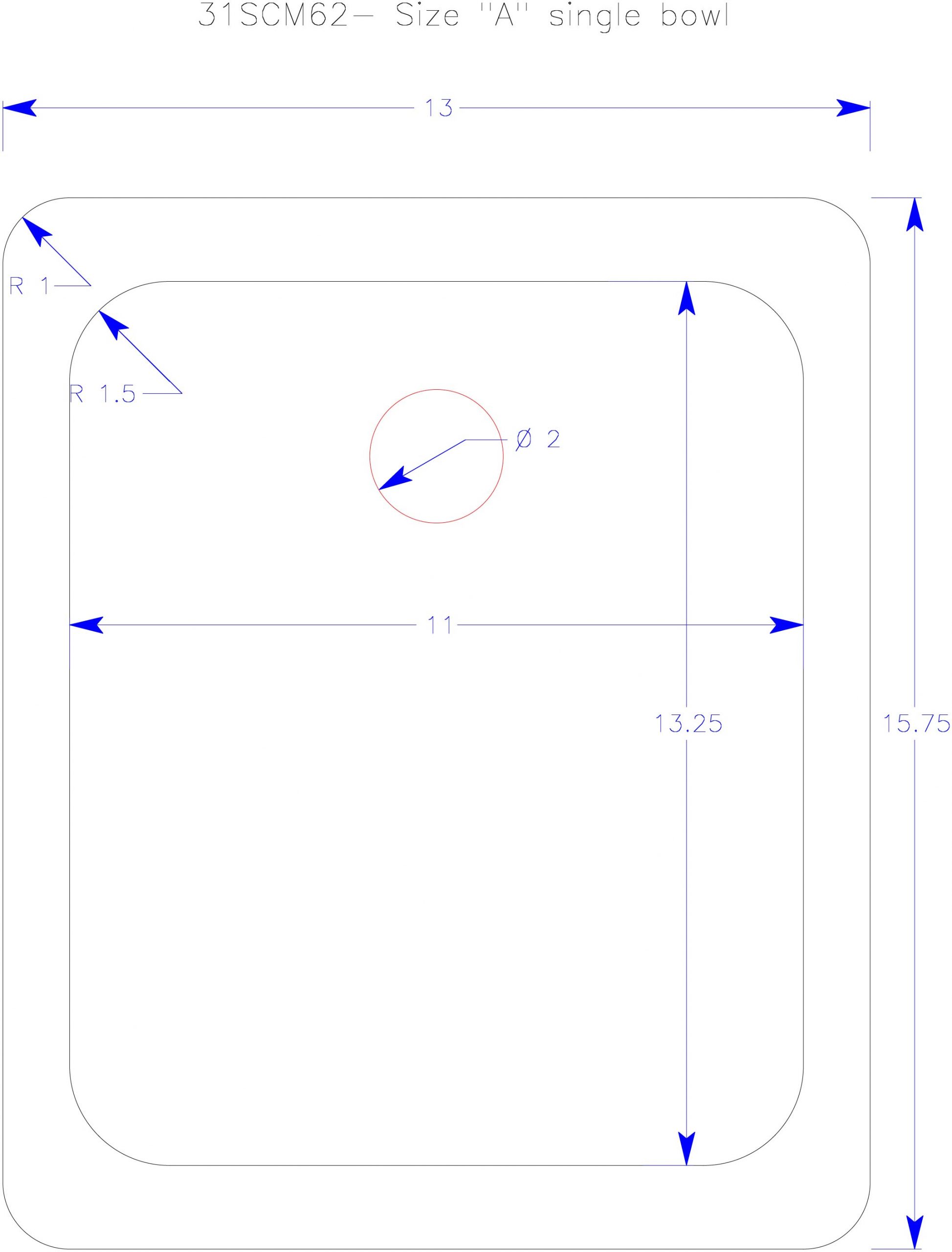

Single Rectangular Sink (Not Illustrated)
With hinged cover and lock or lift off cover. Lock is placed on the cover about 1/4″ from the
left hand side (not pictured). Hinged cover opens to the right
13″ Width, 15-1/4″ Length, Bowl Size 11″W x 13-3/4″L x 6″ Depth

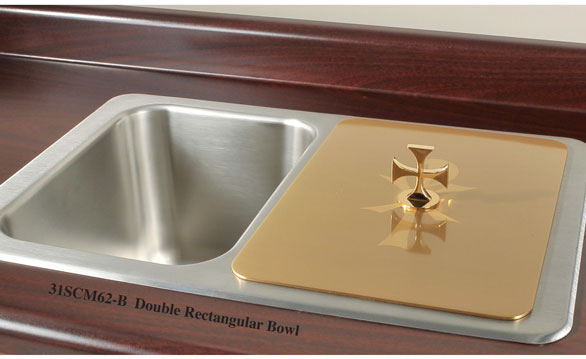

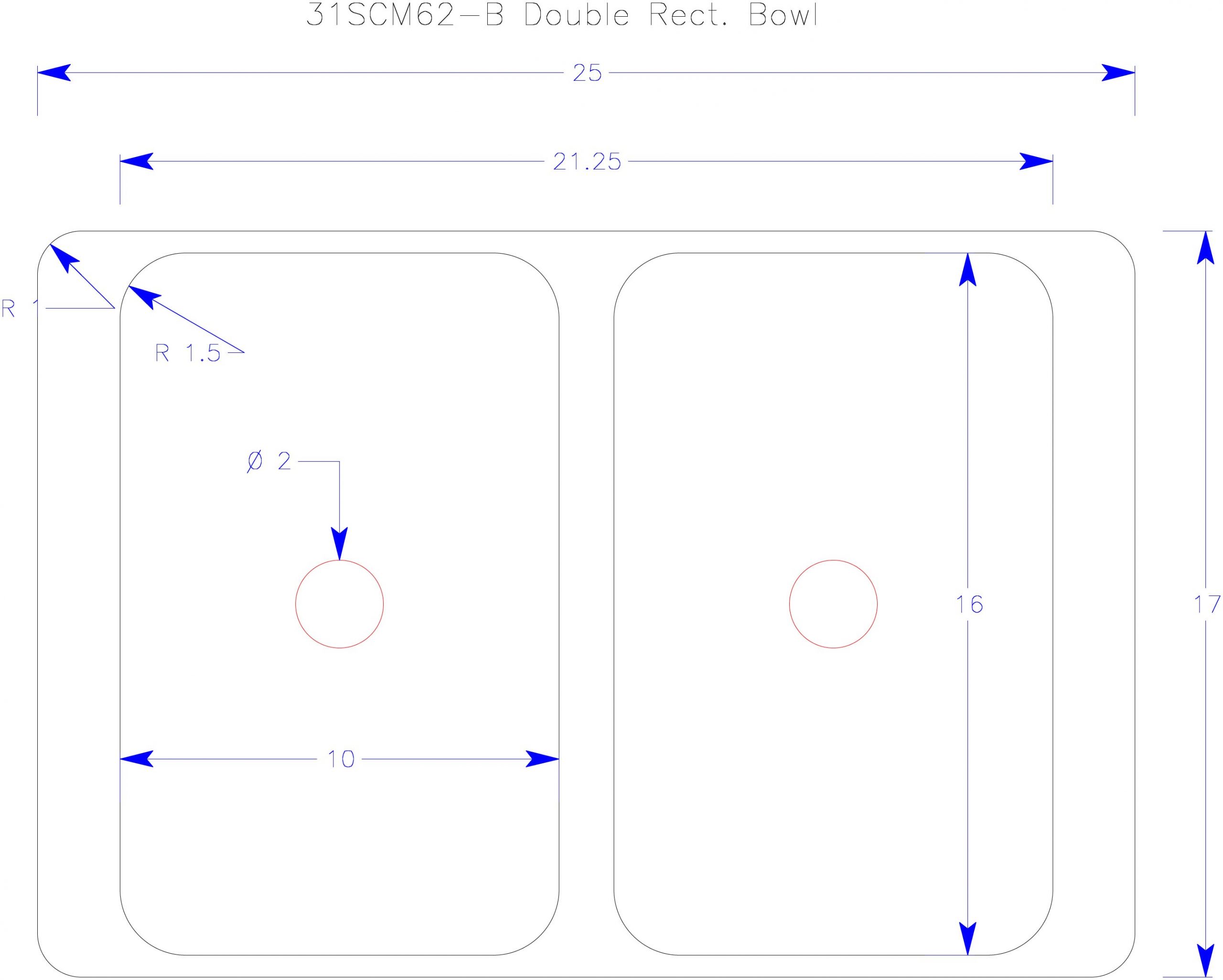

Double Rectangular Bowl Sacrarium Unit
Shown with lift off cover – also available with hinged cover and lock (not shown).
Hinged cover opens to the right (not over the other sink)
25″ Width, 17″ Length, Bowl Size 10″W x 14″L x 9-3/4″ Depth
The required opening is: 23″W x 15″L
Cut out opening is 23.75″ x 15.75″ with rounded corners.
The corners are radius cut.
